Framed is a collection of basic geometric shapes that are hot rolled into a steel profile. The lighting system is incorporated in the steel frame. The light lines displayed by this design lighting emphasize the interior architecture in a unique way. They create a play against a wall, ceiling or table. The robust steel frame gives Framed a high usability and unbounded possibilities in terms of shape and scale.

More info from the begin of January 2020

suspension lamp circle
(suitable as up light or down light)
FR.50.CI.*

click here to read technical specs

* CS coated bare steel
* WH white powder coated
* AN anodic brown powder coated

Order code
FR.50.CI.*
Dimensions
Ø 50cm
Standard cable length 200cm
Light source
neon flex LED
25W / 1050K / 750 lm
Weight
Net. weight 4,2kg
Dimmer
Dimmable driver
Dimmer not included
Standard driver box
24x8x4cm (color as fixture)
IP 20

driver & driver box options
Add the desired driver and driver box to your order.
The standard white driver box will be added to your order if no driver box is mentioned in your purchase order.

DRIVER.TYPE1
DALI/1-10V/0-10V/push on the mains, (push on the mains replaces TRIAC)
DRIVER.TYPE1.CAS
Driver including Casambi bluetooth dimming control, app controlled
FR.DB.A.WH
framed driver box wxdxh = 24x8x4cm white (standard)
FR.DB.A.AN
framed driver box wxdxh = 24x8x4cm anodic brown
FR.DB.A.GM
framed driver box wxdxh = 24x8x4cm gun metal
FR.DB.R.WH
framed driver box round Ø23cm x 5cm white
FR.DB.R.AN
framed driver box round Ø23cm x 5cm anodic brown
FR.DB.R.GM
framed driver box round Ø23cm x 5cm gun metal

*Note: driver box round is suitable for 2 framed circles maximum.

Other sizes on request.

suspension lamp circle
(suitable as up light or down light)
FR.70.CI.*

click here to read technical specs

* CS coated bare steel
* WH white powder coated
* AN anodic brown powder coated

Order code
FR.70.CI.*
Dimensions
Ø 70cm
Standard cable length 200cm
Light source
neon flex LED
30W / 2700K / 1050 lm
Weight
Net. weight 6kg
Dimmer
Dimmable driver
Dimmer not included
Standard driver box
24x8x4cm (color as fixture)
IP 20

driver & driver box options
Add the desired driver and driver box to your order.
The standard white driver box will be added to your order if no driver box is mentioned in your purchase order.

DRIVER.TYPE1
DALI/1-10V/0-10V/push on the mains, (push on the mains replaces TRIAC)
DRIVER.TYPE1.CAS
Driver including Casambi bluetooth dimming control, app controlled
FR.DB.A.WH
framed driver box wxdxh = 24x8x4cm white (standard)
FR.DB.A.AN
framed driver box wxdxh = 24x8x4cm anodic brown
FR.DB.A.GM
framed driver box wxdxh = 24x8x4cm gun metal
FR.DB.R.WH
framed driver box round Ø23cm x 5cm white
FR.DB.R.AN
framed driver box round Ø23cm x 5cm anodic brown
FR.DB.R.GM
framed driver box round Ø23cm x 5cm gun metal

*Note: driver box round is suitable for 2 framed circles maximum.

Other sizes on request.

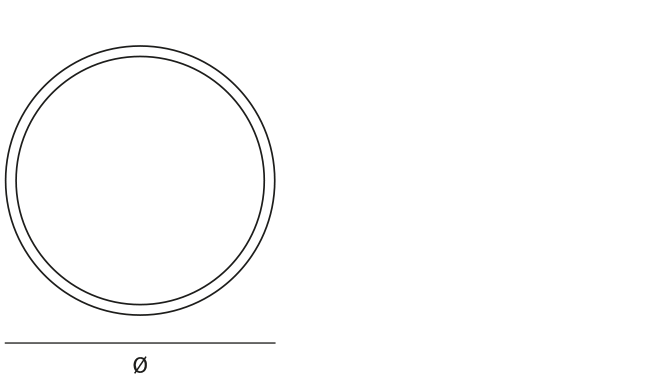

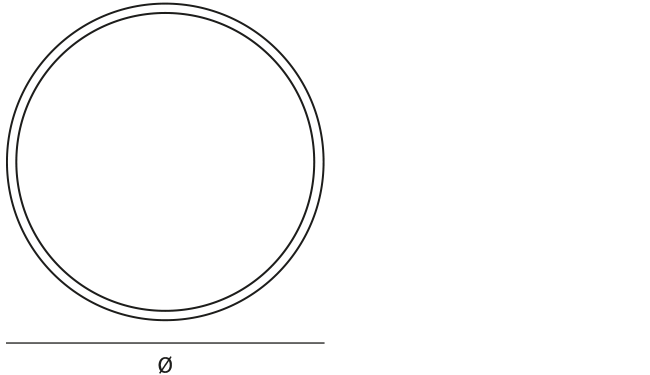

suspension lamp circle
(suitable as up light or down light)
FR.100.CI.*

click here to read technical specs

* CS coated bare steel
* WH white powder coated
* AN anodic brown powder coated

Order code
FR.100.CI.*
Dimensions
Ø 100cm
Standard cable length 200cm
Light source
neon flex LED
45W / 2700K /1500 lm
Weight
Net. weight 8kg
Dimmer
Dimmable driver
Dimmer not included
Standard driver box
24x8x4cm (color as fixture)
IP 20

driver & driver box options
Add the desired driver and driver box to your order.
The standard white driver box will be added to your order if no driver box is mentioned in your purchase order.

DRIVER.TYPE1
DALI/1-10V/0-10V/push on the mains, (push on the mains replaces TRIAC)
DRIVER.TYPE1.CAS
Driver including Casambi bluetooth dimming control, app controlled
FR.DB.A.WH
framed driver box wxdxh = 24x8x4cm white (standard)
FR.DB.A.AN
framed driver box wxdxh = 24x8x4cm anodic brown
FR.DB.A.GM
framed driver box wxdxh = 24x8x4cm gun metal
FR.DB.R.WH
framed driver box round Ø23cm x 5cm white
FR.DB.R.AN
framed driver box round Ø23cm x 5cm anodic brown
FR.DB.R.GM
framed driver box round Ø23cm x 5cm gun metal

*Note: driver box round is suitable for 2 framed circles maximum.

Other sizes on request.

suspension lamp circle
(suitable as up light or down light)
FR.135.CI.*

click here to read technical specs

* CS coated bare steel
* WH white powder coated
* AN anodic brown powder coated

Order code
FR.135.CI.*
Dimensions
Ø 135cm
Standard cable length 200cm
Lightsource
neon flex LED
55W / 2700K / 2025 lm
Weight
Net. weight 10kg
Dimmer
Dimmable driver
Dimmer not included
Standard driver box
24x8x4cm (color as fixture)
IP 20

driver & driver box options
Add the desired driver and driver box to your order.
The standard white driver box will be added to your order if no driver box is mentioned in your purchase order.

DRIVER.TYPE1
DALI/1-10V/0-10V/push on the mains, (push on the mains replaces TRIAC)
DRIVER.TYPE1.CAS
Driver including Casambi bluetooth dimming control, app controlled
FR.DB.A.WH
framed driver box wxdxh = 24x8x4cm white (standard)
FR.DB.A.AN
framed driver box wxdxh = 24x8x4cm anodic brown
FR.DB.A.GM
framed driver box wxdxh = 24x8x4cm gun metal
FR.DB.R.WH
framed driver box round Ø23cm x 5cm white
FR.DB.R.AN
framed driver box round Ø23cm x 5cm anodic brown
FR.DB.R.GM
framed driver box round Ø23cm x 5cm gun metal

*Note: driver box round is suitable for 2 framed circles maximum.

Other sizes on request.

suspension lamp circle
(suitable as up light or down light)
FR.170.CI.*

click here to read technical specs

* CS coated bare steel
* WH white powder coated
* AN anodic brown powder coated

Order code
FR.170.CI.*
Dimensions
Ø 170cm
Standard cable length 200cm
Light source
neon flex LED
75W / 2700K / 3000 lm
Weight
Net. weight 12kg
Dimmer
Dimmable driver
Dimmer not included
Standard driver box
24x8x4cm (color as fixture)
IP 20

driver & driver box options
Add the desired driver and driver box to your order.
The standard white driver box will be added to your order if no driver box is mentioned in your purchase order.

DRIVER.TYPE1
DALI/1-10V/0-10V/push on the mains, (push on the mains replaces TRIAC)
DRIVER.TYPE1.CAS
Driver including Casambi bluetooth dimming control, app controlled
FR.DB.A.WH
framed driver box wxdxh = 24x8x4cm white (standard)
FR.DB.A.AN
framed driver box wxdxh = 24x8x4cm anodic brown
FR.DB.A.GM
framed driver box wxdxh = 24x8x4cm gun metal
FR.DB.R.WH
framed driver box round Ø23cm x 5cm white
FR.DB.R.AN
framed driver box round Ø23cm x 5cm anodic brown
FR.DB.R.GM
framed driver box round Ø23cm x 5cm gun metal

*Note: driver box round is suitable for 2 framed circles maximum.

Other sizes on request.

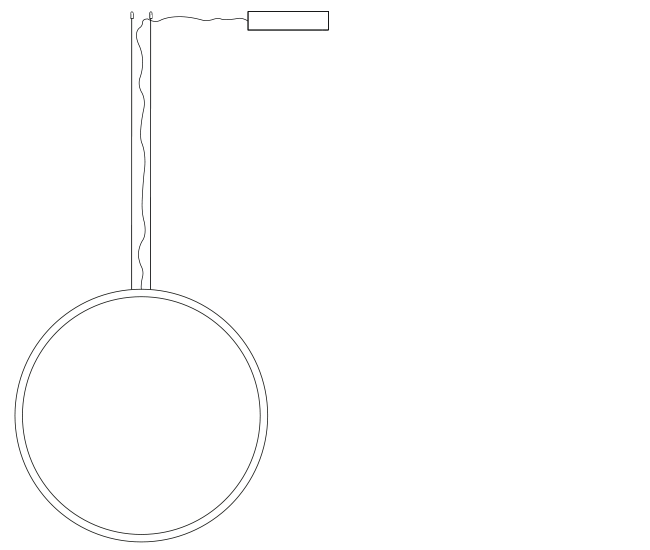

wall circle suspension
FR.100.WA.CI.T1.*

click here to read technical specs

* CS coated bare steel
* WH white powder coated
* AN anodic brown powder coated

Order code T1
FR.100.WA.CI.T1.*
Dimensions
Ø 100cm
Standard cable length 200cm
Light source neon flex LED
45 W / 2700K / 1500 lm
Weight
Net. weight 8kg
Dimmer
Dimmable driver
Dimmer not included
Standard driver box
24x8x4cm (color as fixture)
IP 20

T1 = using two suspension cables that are directly attached to the ceiling

driver & driver box options
Add the desired driver and driver box to your order.
The standard white driver box will be added to your order if no driver box is mentioned in your purchase order.

driver options
DRIVER.TYPE1
DALI/1-10V/0-10V/push on the mains, (push on the mains replaces TRIAC)
DRIVER.TYPE1.CAS
Driver including Casambi bluetooth dimming control, app controlled
FR.DB.A.WH
framed driver box wxdxh = 24x8x4cm white (standard)
FR.DB.A.AN
framed driver box wxdxh = 24x8x4cm anodic brown
FR.DB.A.GM
framed driver box wxdxh = 24x8x4cm gun metal

Other sizes on request.

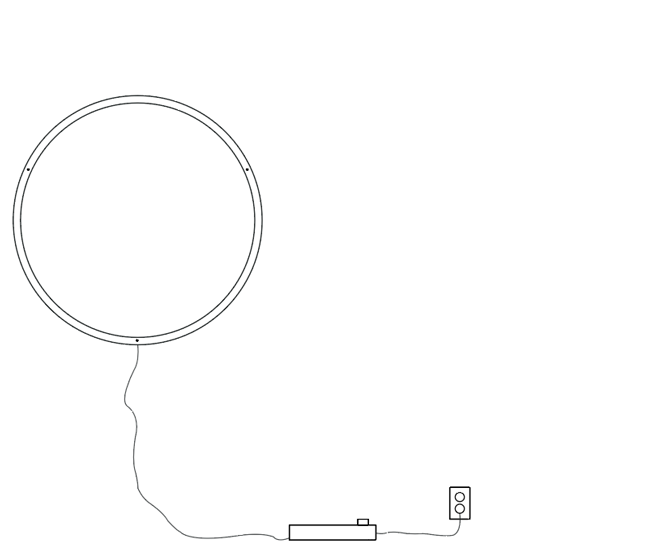

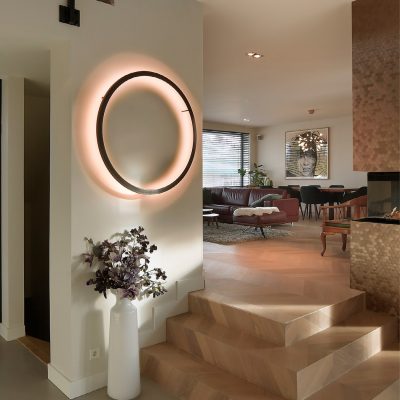

wall circle suspension
FR.100.WA.CI.T2.*

click here to read technical specs

* CS coated bare steel
* WH white powder coated
* AN anodic brown powder coated

Order code T2
FR.100.WA.CI.T2.*
Dimensions
Ø 100cm
Standard cable length 200cm
Lightsource neon flex LED
45 W / 2700K / 1500 lm
Weight
Net. weight 8kg
Floor dimmer switch included
IP 20

T2 = using a bracket on the wall

Other sizes on request.

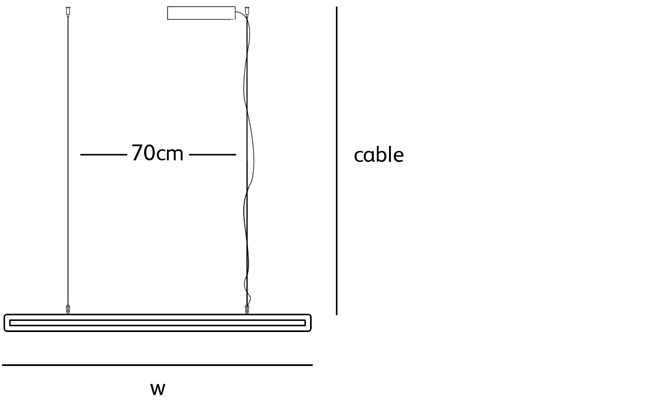

suspension up-down
FR.120.SU.UP/DOWN.*

click here to read technical specs

* GM gunmetal powder coated
* WH white powder coated
* AN anodic brown powder coated

Order code
FR.120.SU.UP/DOWN.*
Dimensions
Wxdxh 120×2,5x7cm
Standard cable length 200cm
Light source
LED 13W up – 19W down / 2700K / 1750 lm
Weight/Packaging
Net. weight 4kg
Gross weight 6kg
Packaging 125×16,5×16,5cm
Dimmer
Dimmable driver
Dimmer not included
IP 20

driver & driver box options
Add the desired driver and driver box to your order.
The standard white driver box will be added to your order if no driver box is mentioned in your purchase order.

DRIVER.TYPE1
DALI/1-10V/0-10V/push on the mains, (push on the mains replaces TRIAC)
DRIVER.TYPE1.CAS
Driver including Casambi bluetooth dimming control, app controlled
FR.DB.A.WH
framed driver box wxdxh = 24x8x4cm white (standard)
FR.DB.A.AN
framed driver box wxdxh = 24x8x4cm anodic brown
FR.DB.A.GM
framed driver box wxdxh = 24x8x4cm gun metal

Other sizes on request.

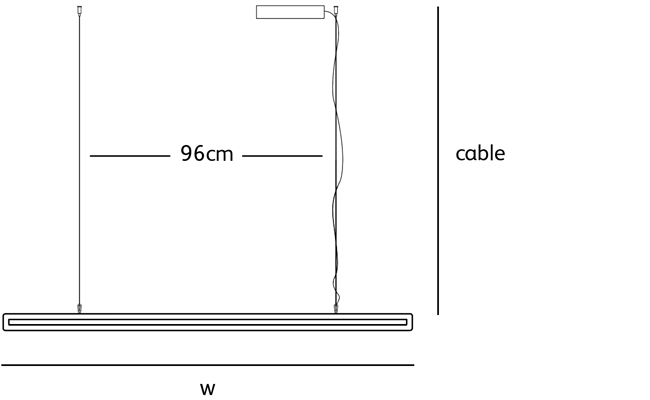

suspension up-down
FR.160.SU.UP/DOWN.*

click here to read technical specs

* GM gunmetal powder coated
* WH white powder coated
* AN anodic brown powder coated

Order code
FR.160.SU.UP/DOWN.*
Dimensions
Wxdxh 160×2,5x7cm
Standard cable length 200cm
Lightsource
LED 19W up – 26W down / 2700K / 2500 lm
Weight/Packaging
Net. weight 5,5kg
Gross weight 8kg
Packaging 165×16,5×16,5cm
Dimmer
Dimmable driver
Dimmer not included
IP 20

driver & driver box options
Add the desired driver and driver box to your order.
The standard white driver box will be added to your order if no driver box is mentioned in your purchase order.

DRIVER.TYPE1
DALI/1-10V/0-10V/push on the mains, (push on the mains replaces TRIAC)
DRIVER.TYPE1.CAS
Driver including Casambi bluetooth dimming control, app controlled
FR.DB.A.WH
framed driver box wxdxh = 24x8x4cm white (standard)
FR.DB.A.AN
framed driver box wxdxh = 24x8x4cm anodic brown
FR.DB.A.GM
framed driver box wxdxh = 24x8x4cm gun metal

Other sizes on request.

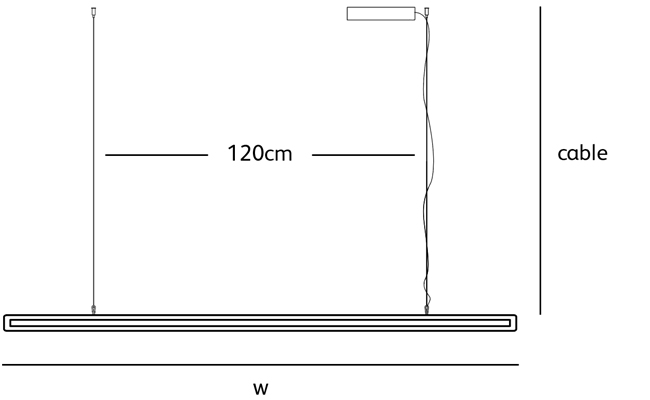

suspension up-down
FR.200.SU.UP/DOWN.*

click here to read technical specs

* GM gunmetal powder coated
* WH white powder coated
* AN anodic brown powder coated

Order code
FR.200.SU.UP/DOWN.*
Dimensions
Wxdxh 200×2,5x7cm
Standard cable length 200cm
Light source
LED 24W up – 34W down / 2700K / 3200 lm
Weight/Packaging
Net. weight 7kg
Gross weight 9,5kg
Packaging 205×16,5×16,5cm
Dimmer
Dimmable driver
Dimmer not included
IP 20

driver & driver box options
Add the desired driver and driver box to your order.
The standard white driver box will be added to your order if no driver box is mentioned in your purchase order.

DRIVER.TYPE1
DALI/1-10V/0-10V/push on the mains, (push on the mains replaces TRIAC)
DRIVER.TYPE1.CAS
Driver including Casambi bluetooth dimming control, app controlled
FR.DB.A.WH
framed driver box wxdxh = 24x8x4cm white (standard)
FR.DB.A.AN
framed driver box wxdxh = 24x8x4cm anodic brown
FR.DB.A.GM
framed driver box wxdxh = 24x8x4cm gun metal

Other sizes on request.

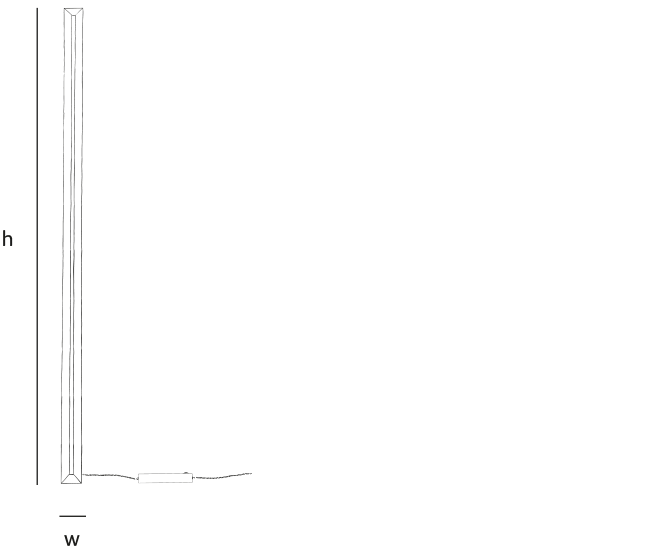

leaning floor lamp
FR.225.FL.*

click here to read technical specs

* CS coated bare steel
* WH white powder coated
* AN anodic brown powder coated

Order code
FR.225.FL.*
Dimensions
Wxdxh 10×2,5x225cm
Lightsource
LED strip
40W LED / 2700K / 3840 lm
Weight/Packaging
Net. weight 10kg
Gross weight 12kg
Packaging 230×16,5×16,5cm
Floor dimmer switch included
IP 20

Other sizes, materials or drivers on request.
